Sie wollen auch die Installationen bereits im Werk vorbereiten?

Mit dem Fixpod können Sie den Vorfertigungsgrad im Werk noch effizienter gestalten. Die Verbindungshülsen für Installationsrohre im Holzbau sind eine neue und clevere Möglichkeit die Leerrohrinstallation zu optimieren.


Die Verbindungshülse für Installationsrohre


Download
Assembly instruction
How to use the Fixpod
Assembly Instruction.pdf
Adobe Acrobat Dokument 611.5 KB

EXPLAINER VIDEO (German)

How to use the Fixpod

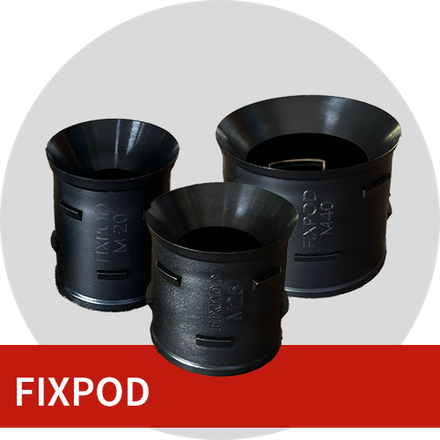

Sizes


The Fixpod cable grommet is available in three sizes:

  • M20, for installation pipes 20 mm (bore ∅ 25 mm)
  • M25, for installation pipes 25 mm (bore ∅ 30 mm)
  • M40, for installation pipes 40 mm (bore ∅ 45 mm)
  • is only used for the blue empty conduit!

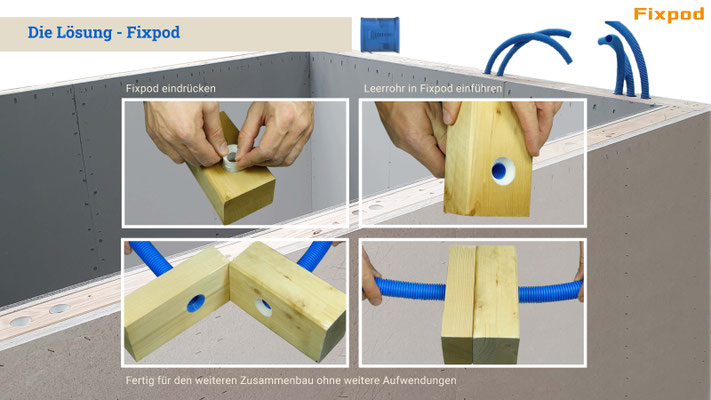

The Solution


YOUR ADVANTAGES:


Processes

  • Efficient in the process, in the factory and on the construction site
  • Quick and easy installation without additional tools
  • No additional connection sleeves required
  • Self-locking connections
  • Increased degree of prefabrication
  • Shorter production + assembly times
  • Flush joining of the elements
  • Tolerance compensation of over 5mm taken into account
  • Easy cable insertion as no looping of the installation conduits possible
  • No jammed or crushed installation conduits

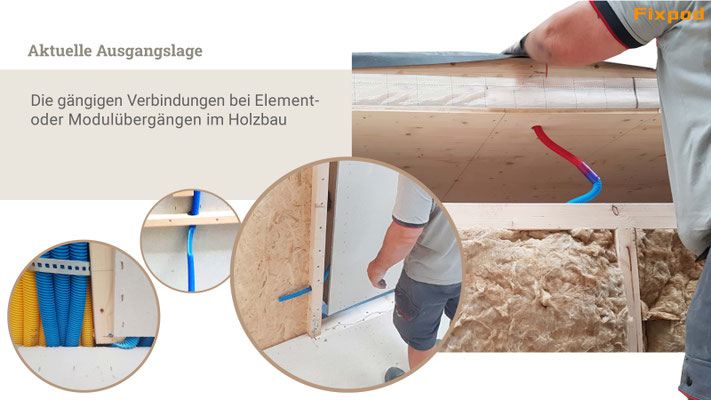

  • No time-consuming threading of the installation pipes at component transitions (element and module construction)
  • Improved quality of workmanship, technically clean solution
  • Clean finish for lamp outlets and other wall or ceiling outlets

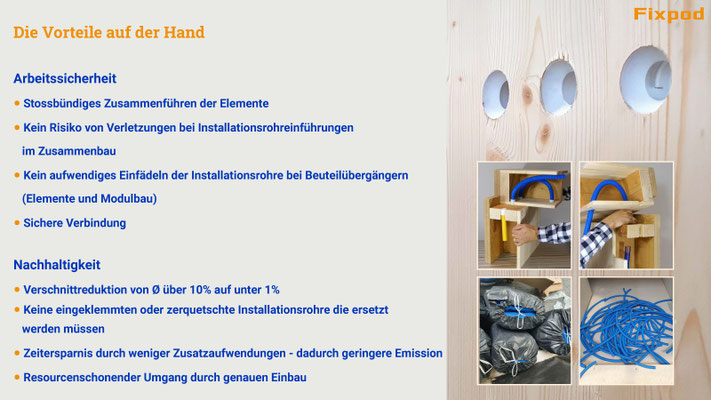

Occupational safety

  • Flush joining of the elements
  • No risk of injury from installation pipe entries during assembly
  • No time-consuming threading of the installation pipes for component transitions (elements and module construction)
  • Secure connection

Sustainability

  • Waste reduction from Ø over 10% to less than 1%
  • No jammed or crushed installation pipes that need to be replaced
  • Time savings due to less additional work - resulting in lower emissions
  • Resource-saving handling thanks to precise installation

POSSIBLE APPLICATIONS

  • Possible connection for the floor-wall connection without inspection opening
  • Possible connection for element transitions (floor, wall, ceiling)
